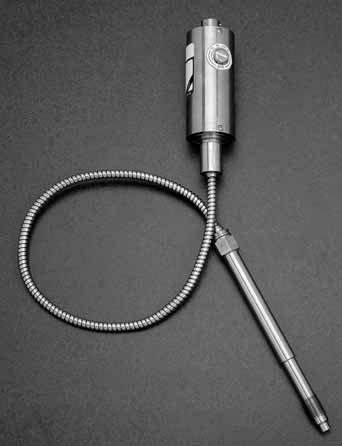

MRT462 Series

Now, users can select from among four pressure ranges on one transducer with the new Dynisco MRT, the first multi-range pressure transducer. By simply turning a rotary switch via an access pot on the transducer, four potential pressure ranges can be selected. The transducer can be ordered so that the equivalent psi, bar, Kg/cm2 or MPa ranges can be chosen. This revolutionary melt pressure transducer offers maximum versatility to handle changing process conditions and materials.
  • Accuracy of better than ±1.0%
  • Reliable pressure measurement
  • Four user selectable pressure ranges in one model
  • Maximizes inventory flexibility
  • Externally selectable range via rotary switch
  • Maximum versatility for changing process conditions
  • 3.33 mV/V FSO for selected range
  • Standard low level output
  • Internal 80% shunt calibration
  • Easy set-up
  • All stainless steel wetted parts
  • Corrosion resistant
  • Proven sensor design
  • Good stability and repeatability

Certifications | Approvals

ISO 9001:2015

RoHS Compliance Fact Sheet


Dynisco Pressure Sensor Care and Maintenance

Learn about the proper care and handling of your Dynisco Pressure Sensors


MRT462 Datasheet


MRT462 Manual

Product Videos

Dynisco Pressure Sensor Care and Maintenance

In order to maintain your Dynisco pressure sensor's reliability and accuracy over time, certain maintenance and cleaning procedures should be followed. This video focuses on the removal, care, and maintenance process of a Dynisco pressure sensor from an extruder

Have A Question? Ask a Dynisco expert for more information.
